Specifications

• Size: C
• Capacity: 9000mAh
• Chemistry: Lithium Thionyl Chloride (Li-SOCI2)
• Voltage: 3.6 Volt
• Brand: Power Portable

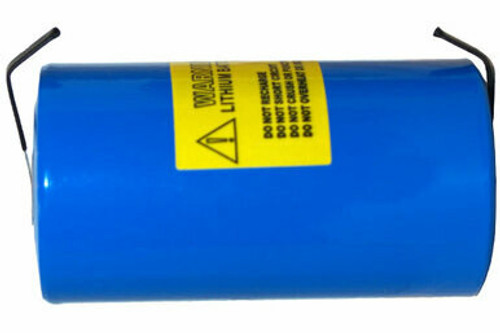

• Terminal: Spot Welded Tabs on Each End
• Diameter(max): 26.2mm (1.02 in)
• Height (max): 50.5mm (1.98 in)
• Typical weight: 55g (1.8 oz)
• Hermetic glass-to-metal sealing
• Non-flammable electrolyte.
• UL Approved --- BBCV2.MH30127

Electrical characteristics

• Nominal capacity 9Ah ( 9000 mAh)
• Open circuit voltage(at +20C +68F) 3.66V
• Nominal voltage(at 1mA +20C +68F) 3.6V
• Pulse capability: Typically up to 400 mA
• Max. Continuous current: 200mA Max
• Pulse current: 400mA
• Storage (recommended) +30C +86 F max
• Operating temperature range -55C / +85C
• lithium-thionyl chloride(Li-SOCl2) technology
• Self discharge is low at less than 1% per annum at +68F, giving an effective shelf life of 10 years.
• Lithium Thionyl Chloride has the highest energy density of any practical Lithium battery chemistry, three times greater than Alkaline (Zinc Manganese Dioxide) batteries.

Equivalent Batteries

• LS26500, LS26500C, TL-4920, TL-5920, TL-2200,
• SB-C01, SB-C02, SL-770, XL-140F, XL-145F, PT-2200

Main applications

• Radio communication and other military applications
• Alarms and security systems
• Beacons and emergency location transmitters
• GPS
• Metering systems
• Sonobuoys
• LED lighting applications
• Memory backup for computers
• Others

Warning

• This is not rechargeable battery. Do not try to recharge it
• The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
• Do not use if the battery casing was mangled.
• Please discharge the battery few minutes with 100mA,if the battery voltage is lower than your need or consult ABLE.
• Don't use different models of battery in series.
• Soldering the tag should be finished in few seconds.
• This is not high drain battery, please don't use it for application with discrging current > 200mA
