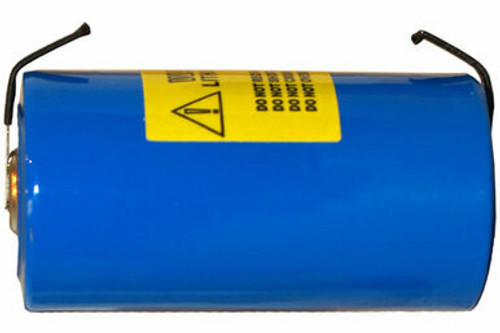

D (ER34615 / SAFT LSH20) 3.6 Volt Primary Lithium Battery with Tabs (19000 mAh)

D (ER34615 / SAFT LSH20) 3.6 Volt Primary Lithium Battery with Tabs (19000 mAh)

SKU:19520

Power Portable

$30.66
(No reviews yet) Write a Review
SKU:
19520
UPC:
628848195209
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 2 - 3 and pay only $30.66 each
  • Buy 4 - 5 and pay only $29.47 each
  • Buy 6 - 10 and pay only $28.55 each
  • Buy 11 - 30 and pay only $26.96 each
  • Buy 31 - 86 and pay only $24.45 each
  • Buy 87 or above and pay only $24.45 each
Size:
D
Chemistry:
Lithium Thionyl Chloride
Terminal:
Tabs
Voltage:
3.6 Volt
ecotax_id:
18
ecotax_qty:
1
Adding to cart… The item has been added

Compatible Products

Features

  • This D sized Lithium Thionyl Chloride battery is ideal for wireless alarm systems, memory backup for computers, high tech dive computers, night vision equipment.
  • Lithium Thionyl Chloride has the highest energy density of any practical Lithium battery chemistry, three times greater than Alkaline (Zinc Manganese Dioxide) batteries.
  • Widest operating temperature range of -76F to + 185 F.
  • Self discharge is low at less than 1% per annum at +68F, giving an effective shelf life of 10 years.
  • Non-flammable electrolyte.
  • Compatible with Saft LS 33600 Lithium cell
  • Brand: Blue Sleeve
  • Spot Welded tabs on each end
  • UL Approved --- BBCV2.MH30127

Electrical characteristics

  • Chemistry: Lithium-thionyl Chloride (Li-SOCl2) technology
  • Nominal capacity: 19 Ah ( 19,000 mAh)
  • Open circuit voltage: (at +20C +68F) 3.66V
  • Nominal voltage: (at 1mA +20C +68F) 3.6V
  • Max. Continuous current: 200mA Max
  • Pulse current: Up to 400mA
  • Storage (recommended): +30C +86 F max
  • Operating temperature range: -55C / +85C
  • Diameter(max): 34.2mm(1.4 in)
  • Height (max): 61.5mm(2.46 in)
  • Typical weight: 110g (3.6 oz)

Main applications

  • Radiocommunication and other military applications
  • Alarms and security systems
  • Beacons and emergency location transmitters
  • GPS
  • Metering systems
  • Memory back up
  • Sonobuoys
  • LED lighting applications
  • Others
  • Compatibale with and replaces SAFT LSH20 battery with 45% more energy

Also knowns as

  • ER34615H
  • ER34615C
  • ER34615M

⚠️  Warning

  • This is a non-rechargeable Lithium battery. Please Do not try to recharge it!
  • This is not a high drain battery, please don't use it for the applications with discharging current > 200 mA!
  • The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
  • Do not use if the battery casing is damaged.
  • Please discharge the battery few minutes with 100mA, if the battery voltage is lower than your need or consult ABLE.
  • Don't use different models of battery in series.
  • Soldering the tab should be finished in a few seconds.
