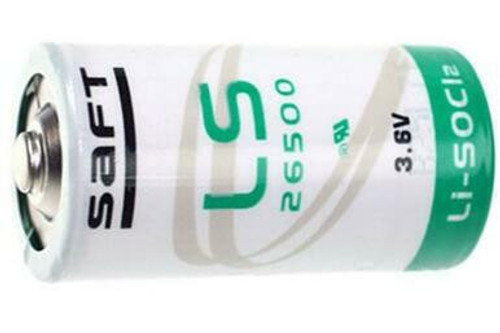

Specifications

• Voltage: 3.6 Volt
• Capacity: 7.7 Ah
• Size: C
• Chemistry: Lithium Thionyl Chloride (Li-SOCI2)
• Brand: SAFT
• Termination Style: Button Top
• Shelf Life: 10+ Years
• Maximum Recomended Continuous Current: 150 mA
• Maximum Pulse Current Capability: 300 mA
• Diameter (max): 26 mm (1.03 in)
• Height (max): 50 mm (1.97 in)
• Typical Weight: 48g (1.7oz)
• Quantity:  12 pcs

Key Features

• High operating voltage, stable during most of the application lifetime
• Some of the highest nominal capacities on the market today
• Excellent reliability over extended operating life
• Operating Temperature Range: -60°C/+85°C (-76°F/+185°F)
• Low self-discharge rate (less than 3% after 1 year of storage at + 20°C)
• Excellent resistance to humid environments
• Low magnetic signature
• Non-flammable (and non-pressurized at ambient temperature) inorganic (but corrosive) electrolyte
• Less than 1% capacity loss during storage at ambient temperature before use

Compatible With

• ER26500
• LS26500C
• TL-4920
• TL-2200
• SB-C01
• SB-C02
• SL-770
• XL-140F
• XL-145F
• PT-2200

⚠️  Warning

• This battery is not rechargeable. Do not try to recharge.
• The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
• Don't use different models of battery in series.
• Soldering the tab should be finished in few seconds.
• Do not use if the battery casing was mangled
